Dhrutara

Dhrutara

₹ 990.00
₹ 990.00
Color:
Finishing:

Request a Bulk Order Quote

BIM/STL
TALK TO AN EXPERT
View full details

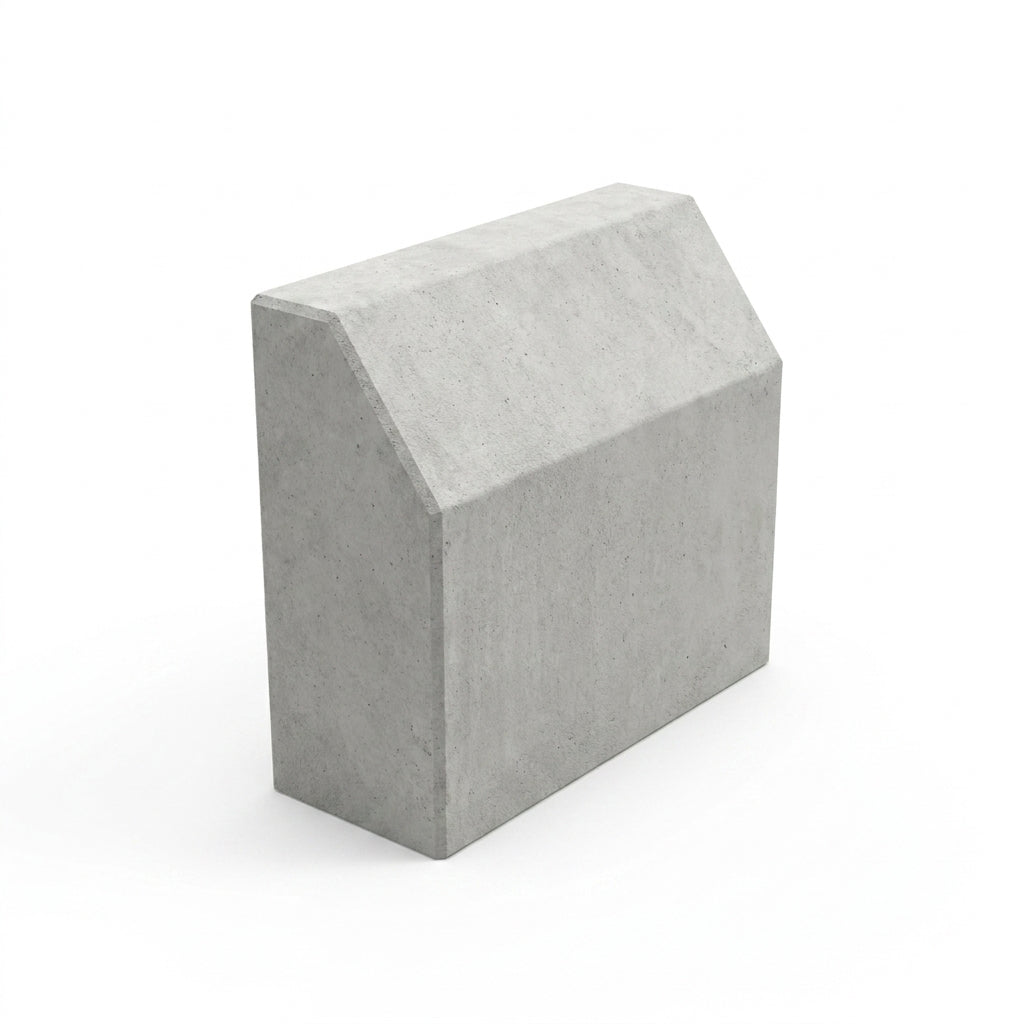

The concrete diversion_block functions as a robust barrier for traffic control, utilizing high-density material to ensure structural integrity and weather resistance under demanding environmental conditions while requiring minimal maintenance for sustained operational performance. These units integrate seamlessly into transit hubs, industrial zones, parking facilities, and large-scale urban infrastructure projects. The monolithic form features a clean angular profile and a smooth matte finish, emphasizing geometric precision and a neutral visual presence.

HEIGHT

500.0

mm

WIDTH

600.0

mm

LENGTH

50.0

mm

WEIGHT

30.0

kg

PICK A COLOUR

Polar White

Silvergrey

Anthracite

Finishing
  • Product
1 8
TDS
BIM/SLT
TALK TO AN EXPERT
REQUEST TO CATALOGUE
Surface Specification
Texture
sheen level
None - Ultra Flat
Colour
Best For
Luxury Floors & Counters
Hex code
Maintenance
Very Low

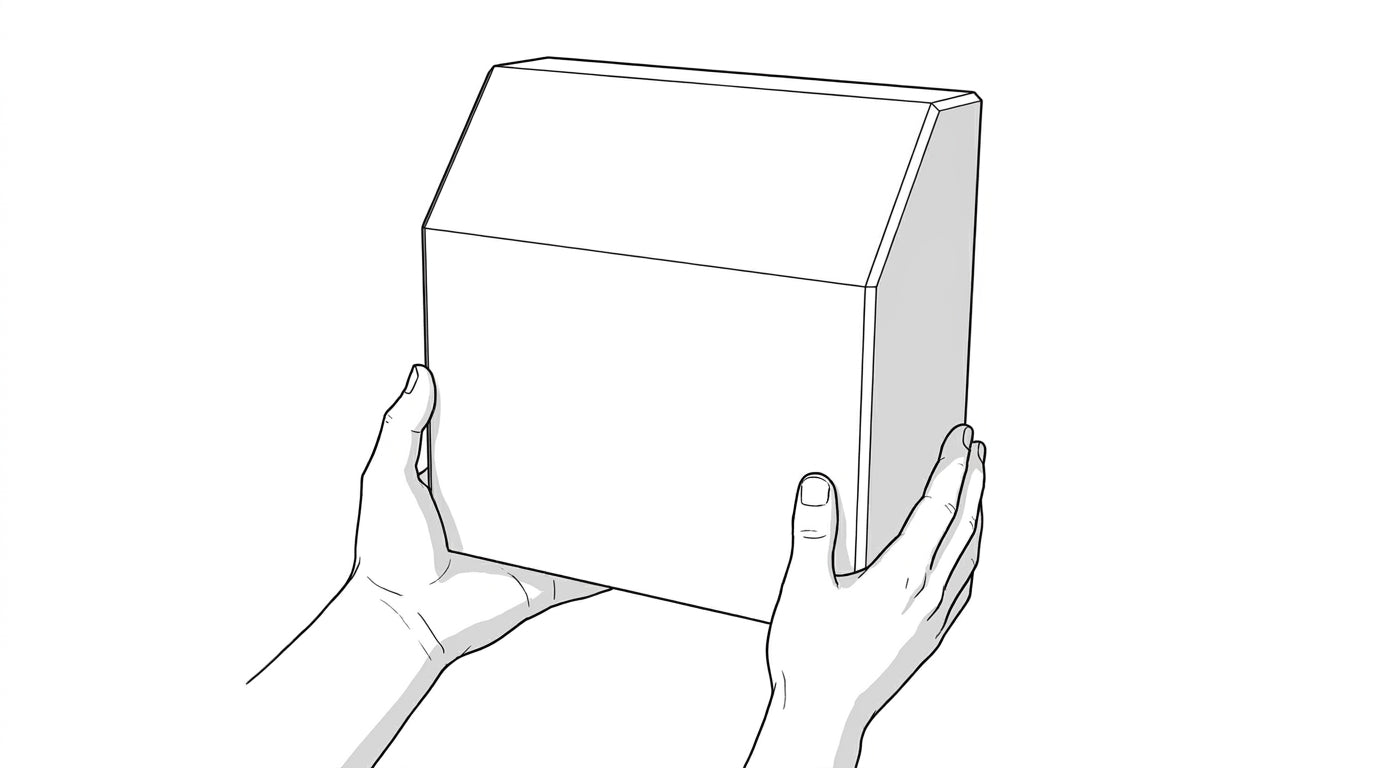

Diversion blocks must be handled with extreme precision to prevent impact damage, edge chipping, or surface abrasion during transport and site staging. Lifting and movement require balanced support across the primary faces to distribute loads evenly and avoid induced stress on the slender 50mm profile. Units should be stored on a flat, level surface using non-staining dunnage to prevent point loading and unintended contact between finished concrete surfaces.

Installation requires a stable, level, and properly compacted load-bearing substrate that aligns precisely with the block's geometric footprint. Proper alignment and seating are essential to maintain the integrity of the diversion system and ensure long-term dimensional stability across the installation. Any damage resulting from improper handling, inadequate substrate preparation, or incorrect installation techniques remains outside the manufacturer's scope of responsibility.

Providing and supplying factory manufactured precast concrete diversion block of approved design and manufacture suitable for utility and municipal infrastructure applications, having dimensions 500 mm x 600 mm x 50 mm, manufactured under controlled factory conditions using a dense concrete matrix to ensure structural integrity and load bearing capacity, featuring a modular unit form with well defined edges and consistent casting for uniform quality and finish, including necessary reinforcement provision where applicable and proper curing to provide resistance to weathering and wear, designed as a service access component for drainage infrastructure with a smooth finish and dimensional accuracy to ensure long service life and durability in public realm utility works, all as per the directions of the Engineer-in-Charge. Approved Make: Aarya Precast / The Concrete Shop or approved equivalent

Quick Specifications

MaterialGRC
Height

500.0

mm

Width

600.0

mm

Length

50.0

mm

Weight

30.0

kg

Bus stopsBike lanespremium public spacesPublic Park

The concrete structure is highly durable and designed for minimal upkeep. Periodic cleaning using ambient water and a mild, pH-neutral detergent is recommended to clear away dirt, leaves, and environmental deposits. It is advised to avoid using abrasive cleaning pads, wire brushes, or harsh acidic chemicals that may degrade the surface finish. Periodic visual inspection of the grouted joints is recommended to ensure continued stability and prevent moisture ingress; if it is fixed on ground.

How is the load-bearing capacity of these concrete units determined?+
Each unit is cast using high-strength reinforced concrete, engineered to meet specific kilonewton (kN) ratings required for vehicular or pedestrian traffic. The composition typically includes fiber-reinforcement or integrated steel rebar cages, ensuring the material can withstand compressive forces and shear stress without compromising structural geometry over extended service lifecycles.
What preparation is required for the installation of subsurface utility components?+
Successful integration requires a compacted granular base or a concrete mud slab, depending on soil conditions and load requirements. Precise excavation and leveling ensure proper alignment with existing site services. We recommend coordinating with civil engineers to confirm that bedding depths and anchoring specifications align with local geotechnical reports and infrastructure standards.
What maintenance protocols ensure the longevity of utility concrete installations?+
While inherently durable, utility concrete benefits from periodic inspections for debris clearance and structural integrity. Applying a high-grade silane-based sealer every three to five years mitigates chloride penetration and prevents freeze-thaw damage, preserving the surface finish and internal reinforcement against environmental degradation in harsh climates.
