Urvara

Urvara

Regular price ₹ 9,500.00
Regular priceSale price ₹ 9,500.00
Color:
Finishing:
Quantity

Pan India Delivery

We deliver our products across India, ensuring they reach your project site safely, on time, and ready for installation whether it's a residential, commercial, hospitality, or public space project.

Quality Assurance

Every product goes through careful manufacturing and quality checks to ensure it matches the design, performs reliably, and meets the standards expected by architects and designers.

Installation Support

Our team provides guidance and technical support throughout the installation process, helping ensure products are installed correctly and perform as intended within the architectural space.
View full details

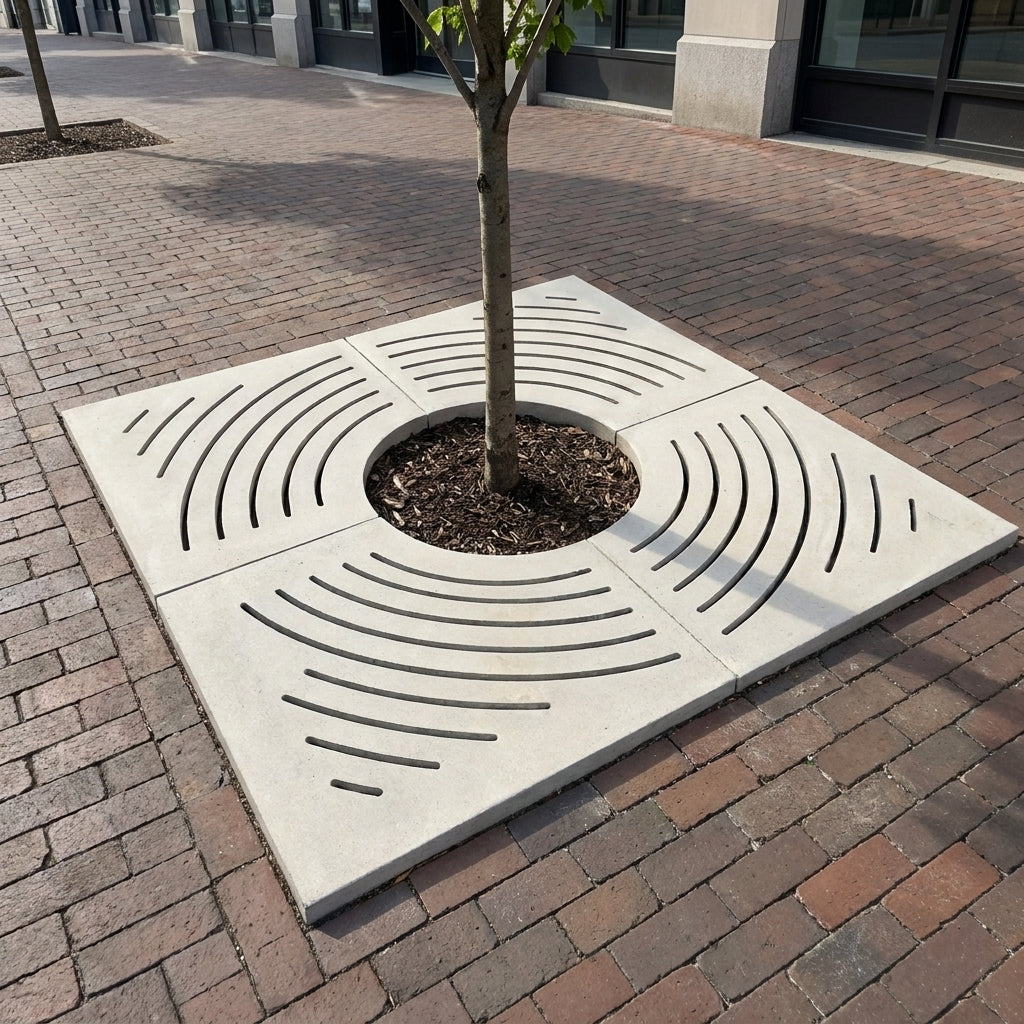

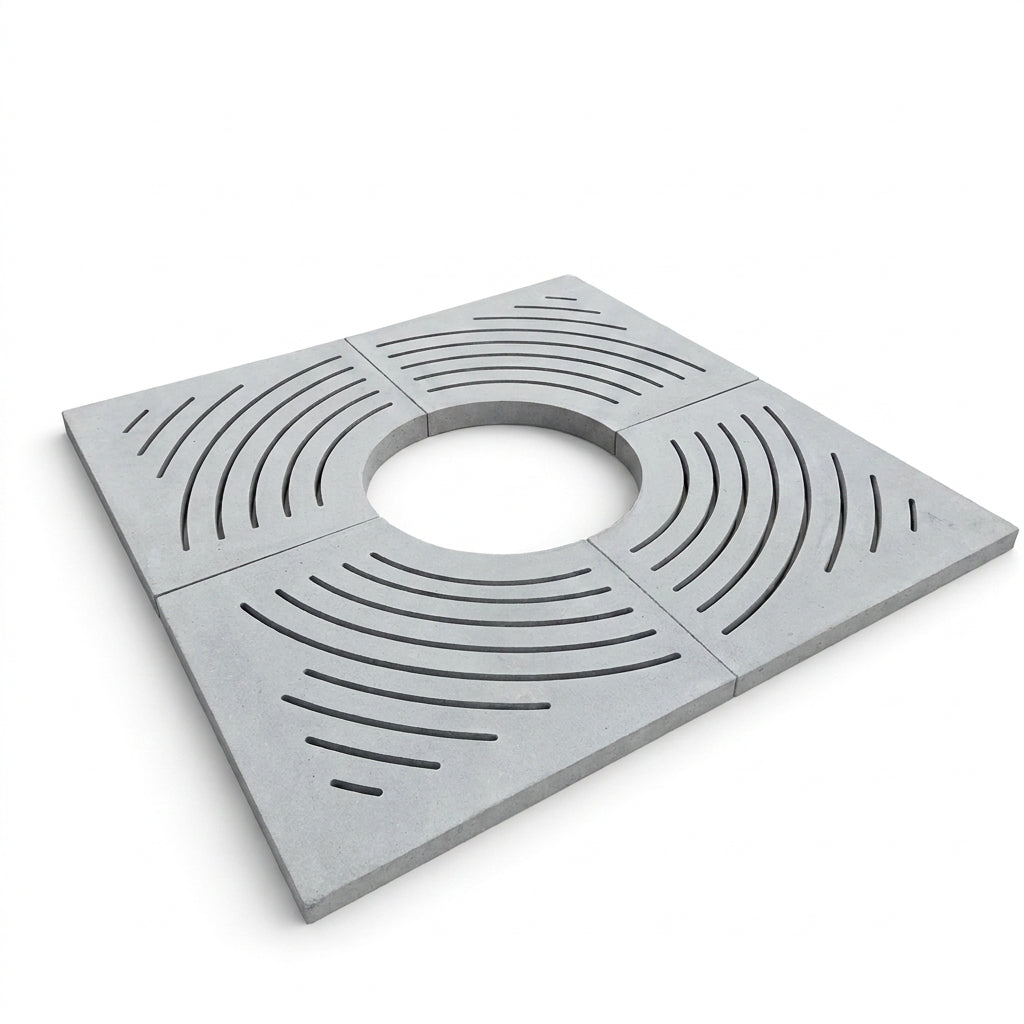

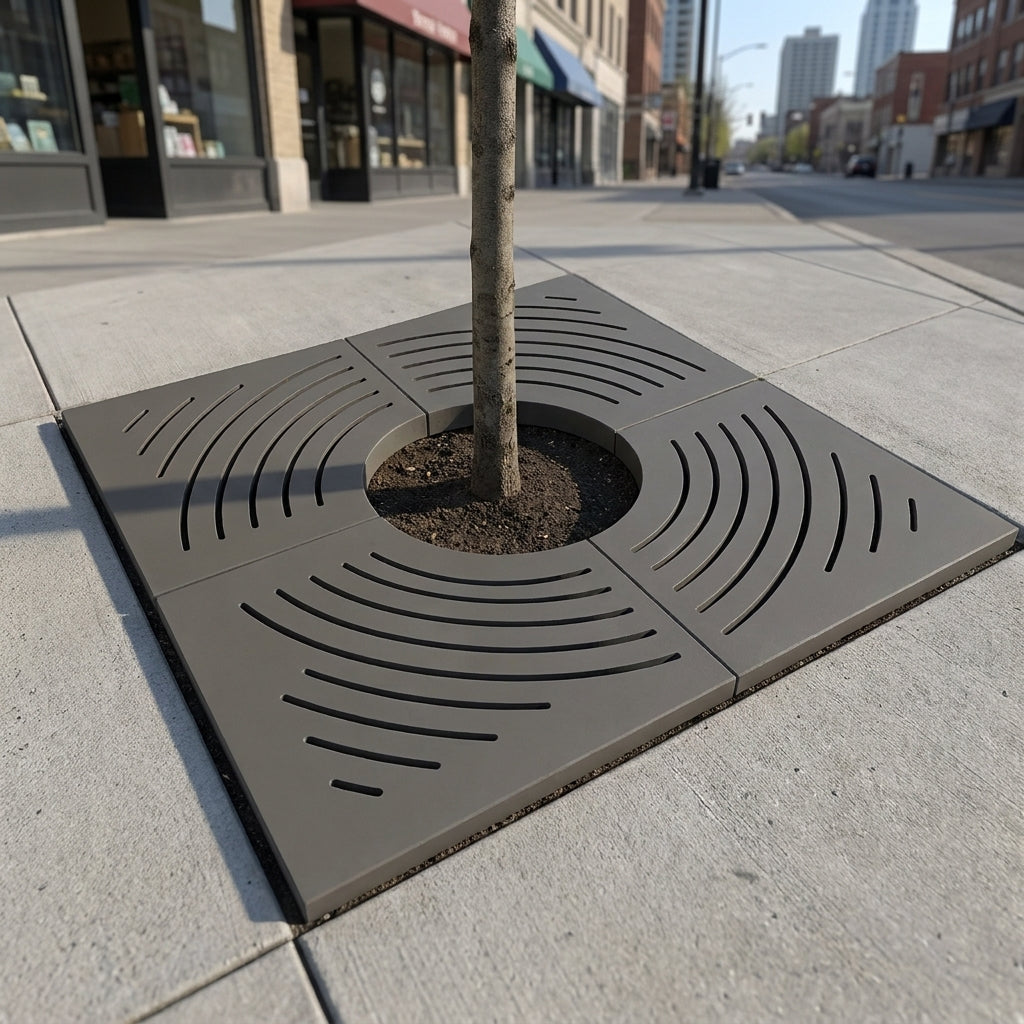

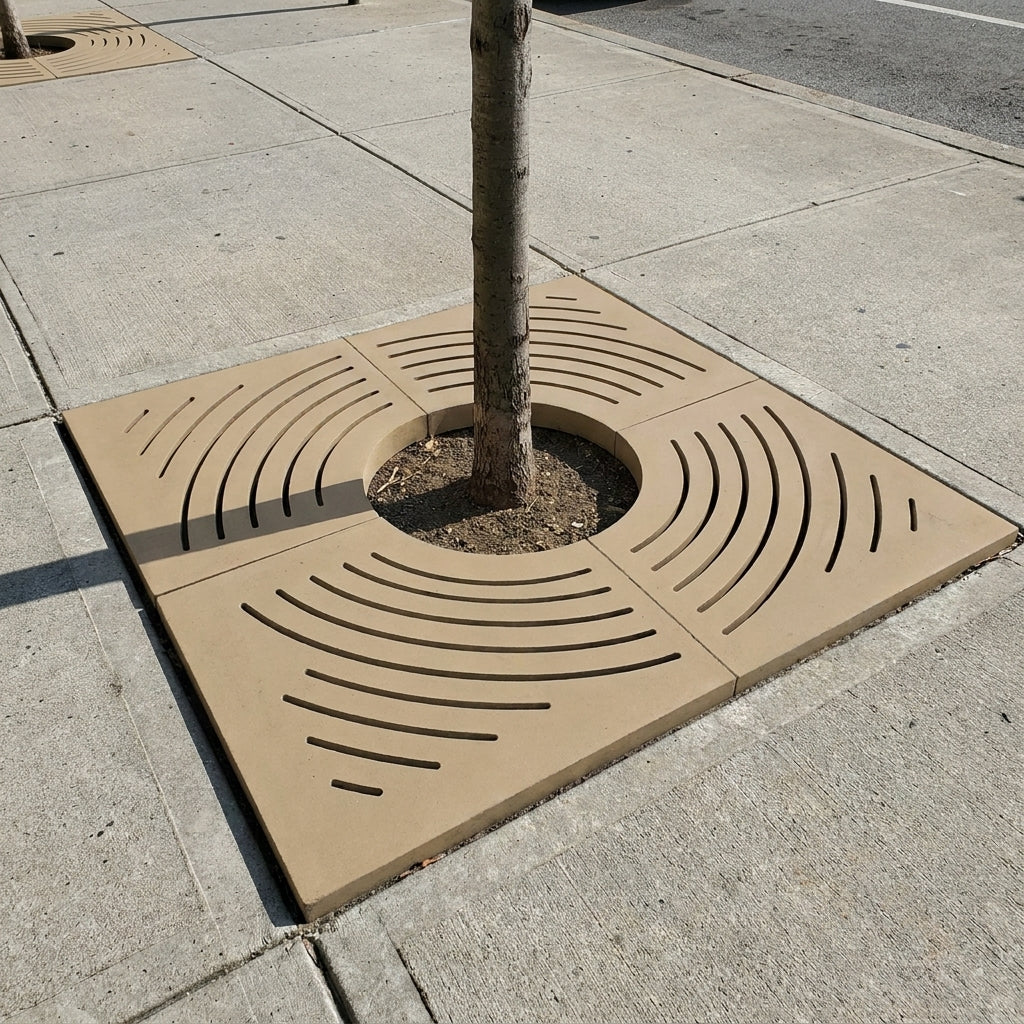

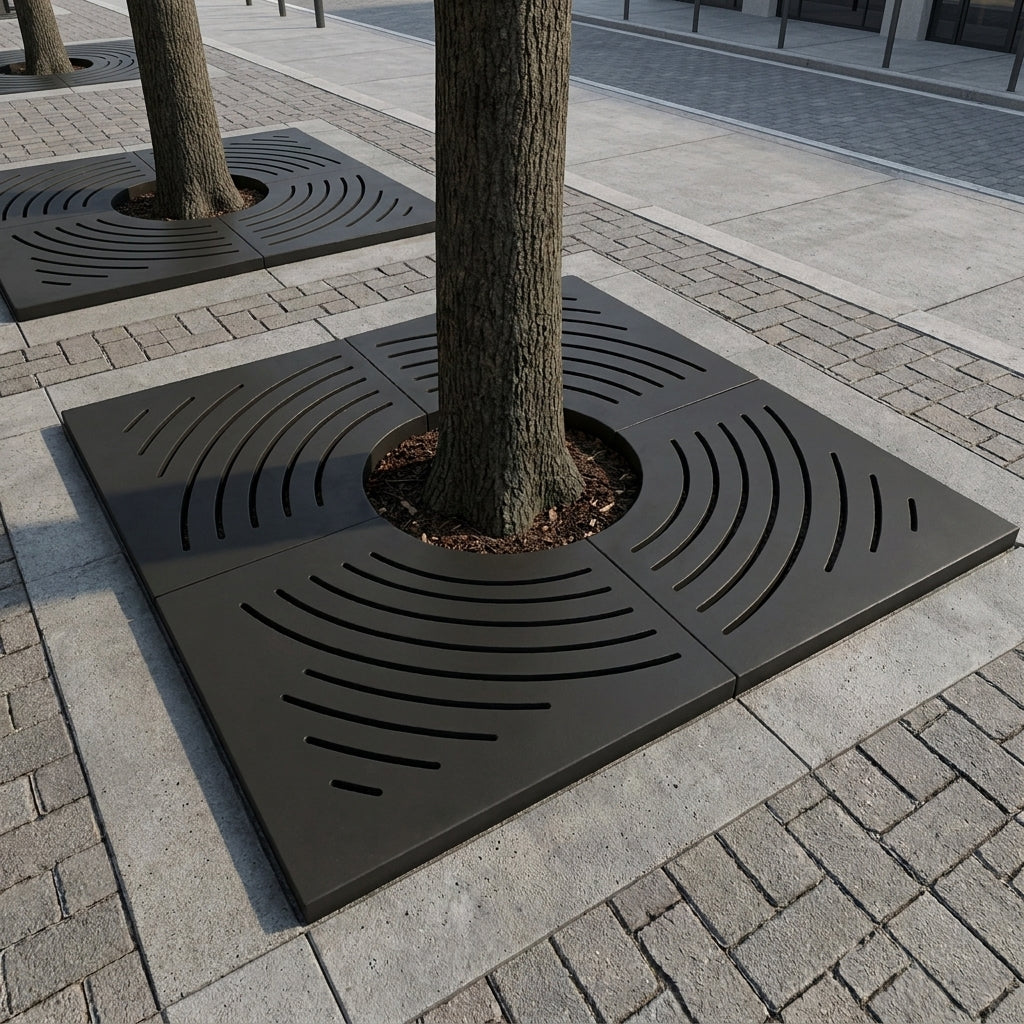

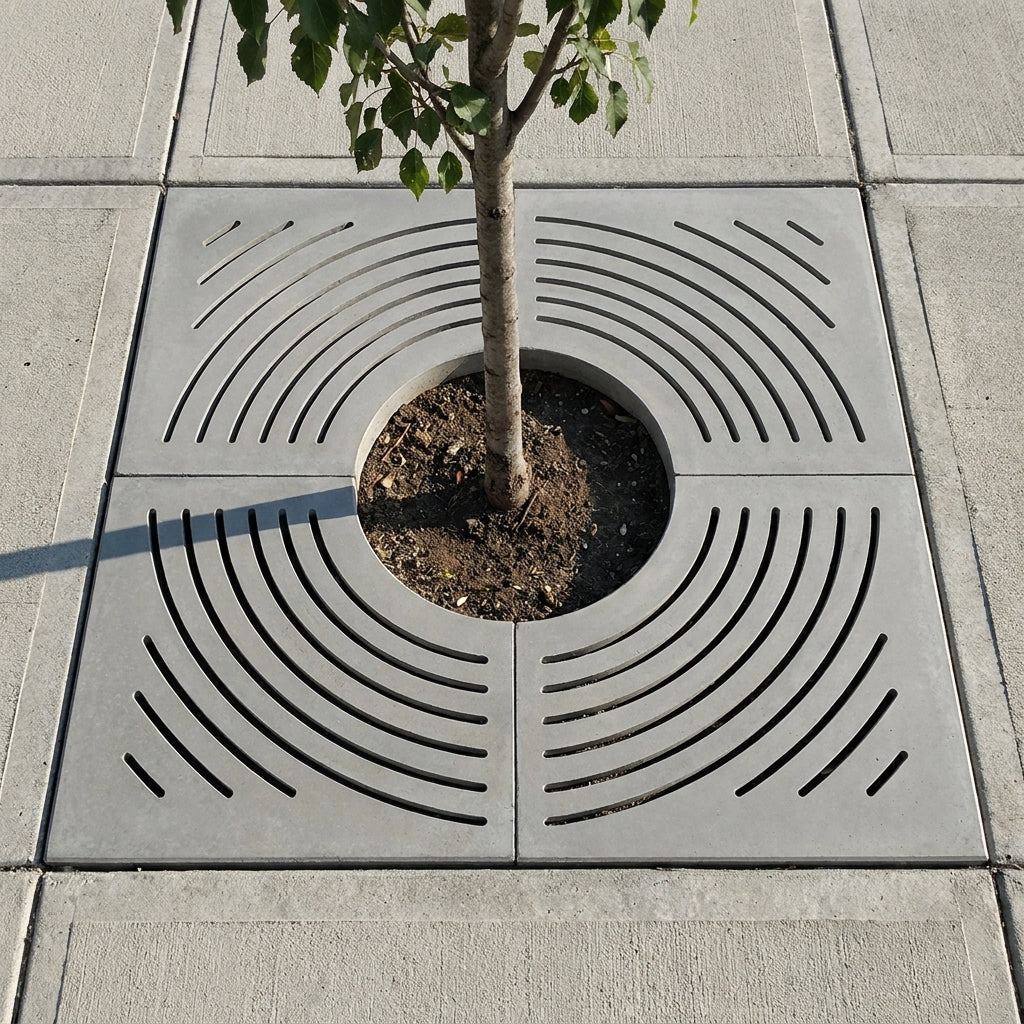

These concrete tree_gratings provide a robust, low-maintenance solution for urban landscaping, ensuring long-term structural integrity and weather resistance while facilitating essential water infiltration and root aeration through a modular, load-bearing design. The system integrates seamlessly into public plazas, pedestrian boulevards, and contemporary commercial developments. Four modular quadrants form a monolithic square geometry with a smooth matte finish, featuring concentric linear apertures that create a precise radial pattern.

HEIGHT

20.0

mm

WIDTH

600.0

mm

LENGTH

600.0

mm

WEIGHT

10.0

kg

PICK A COLOUR

Polar White

Silvergrey

Anthracite

Finishing
Skip to product information
1 of 7
Surface Specification
Texture
sheen level
None - Ultra Flat
Colour
Best For
Luxury Floors & Counters
Hex code
Maintenance
Very Low

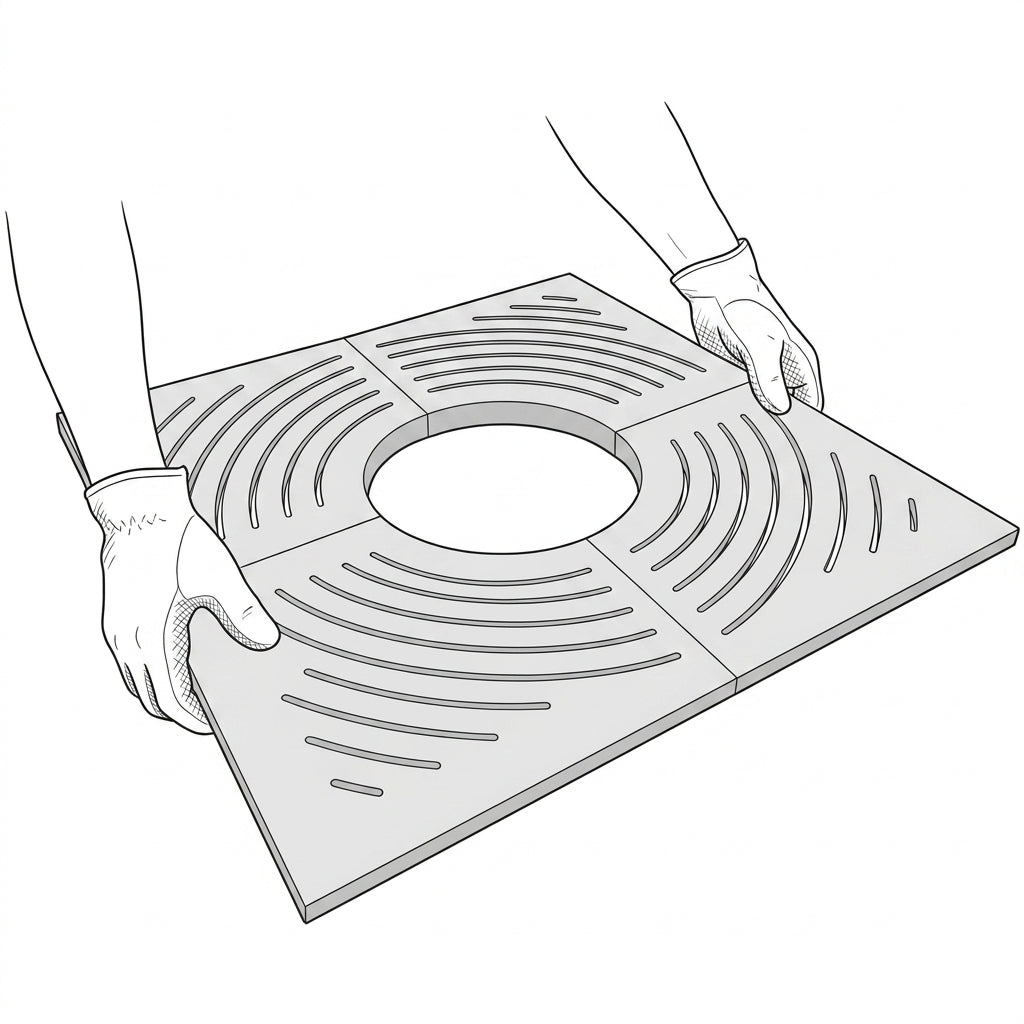

Handling of these precast tree grating components requires strict adherence to procedures that prevent impact, edge chipping, and surface abrasion. Each quadrant must be lifted using methods that ensure balanced load distribution across the entire surface area to mitigate induced structural stress. During staging, units must be stored on a flat, non-abrasive surface, avoiding point loading or direct contact between finished faces to preserve the integrity of the radial slot geometry.

Installation necessitates a stable, level, and load-bearing substrate precisely aligned with the assembly's square perimeter and central aperture. Each segment must be seated flush against the prepared base to ensure uniform support and prevent movement under operational loads. The manufacturer assumes no responsibility for material failure, cracking, or surface degradation resulting from improper handling, inadequate substrate preparation, or deviations from specified installation protocols.

Providing and supplying factory manufactured precast concrete tree gratings of approved design and manufacture for utility and municipal infrastructure applications, having dimensions 500 mm x 200 mm x 500 mm, produced under controlled factory conditions with a dense concrete matrix and proper curing to ensure high structural integrity and load bearing capacity, featuring dimensional accuracy with well-defined edges and a smooth finish resistant to weathering and wear, designed as a modular service access component to facilitate drainage and root protection while maintaining consistent casting quality and uniform finish for long service life in public space development, being suitable for intended architectural or infrastructure use and manufactured with reinforcement provision where applicable to ensure durability and resistance to environmental stress. Approved Make: Aarya Precast / The Concrete Shop or approved equivalent

Quick Specifications

MaterialGRC
Height

20.0

mm

Width

600.0

mm

Length

600.0

mm

Weight

10.0

kg

premium public spacesOffice CampusesLuxury commercial spacesParking Lot

The concrete structure is highly durable and designed for minimal upkeep. Periodic cleaning using ambient water and a mild, pH-neutral detergent is recommended to clear away dirt, leaves, and environmental deposits. It is advised to avoid using abrasive cleaning pads, wire brushes, or harsh acidic chemicals that may degrade the surface finish. Periodic visual inspection of the grouted joints is recommended to ensure continued stability and prevent moisture ingress; if it is fixed on ground.

What preparation is required for the installation of subsurface utility components?+
Successful integration requires a compacted granular base or a concrete mud slab, depending on soil conditions and load requirements. Precise excavation and leveling ensure proper alignment with existing site services. We recommend coordinating with civil engineers to confirm that bedding depths and anchoring specifications align with local geotechnical reports and infrastructure standards.
What maintenance protocols ensure the longevity of utility concrete installations?+
While inherently durable, utility concrete benefits from periodic inspections for debris clearance and structural integrity. Applying a high-grade silane-based sealer every three to five years mitigates chloride penetration and prevents freeze-thaw damage, preserving the surface finish and internal reinforcement against environmental degradation in harsh climates.
